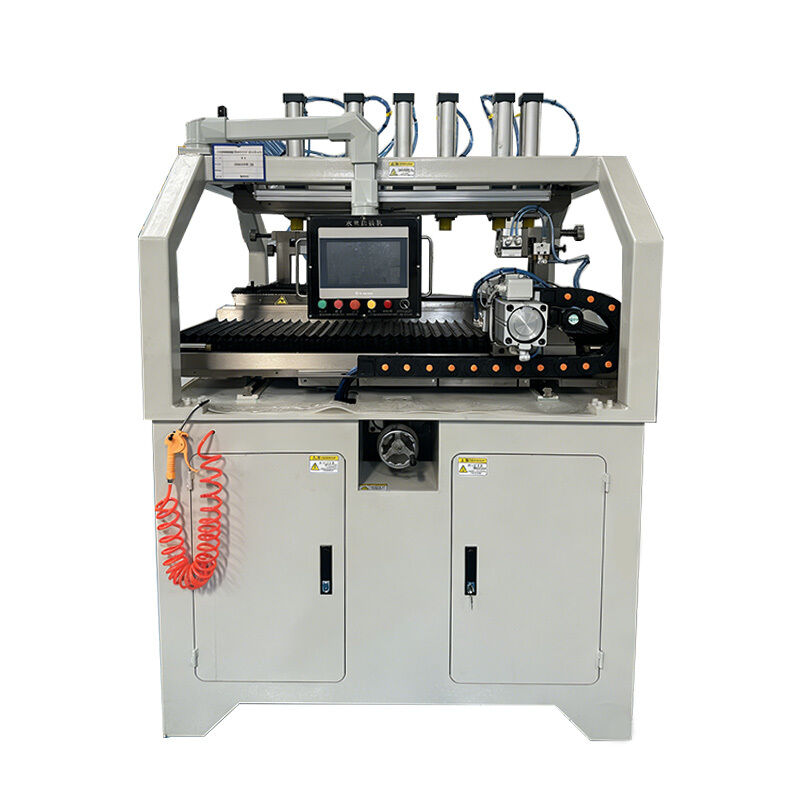

CNC Servo Radiator Crimping Machine Precision Fast Changeover

This CNC servo‑driven radiator crimping machine (water chamber press) is essential equipment for radiator manufacturing and repair. It precisely presses and crimps plastic water chambers onto aluminum core plates, creating leak‑proof, high‑strength joints. Designed as a crimping machine for automotive radiator, intercoolers, and condensers, it replaces manual assembly and ensures consistent sealing.

As a professional radiator crimping machine manufacturer and supplier, we offer competitive radiator crimping machine price and models for sale for passenger and commercial vehicles. This aluminum radiator crimping machine also serves as a heat exchanger crimping machine for various thermal management systems.

• High Precision & Servo Control
  Unlike traditional hydraulic radiator crimping machine, the servo closed‑loop system delivers force accuracy of ±0.5%–±1% FS and repeat positioning ≤±0.02 mm. Multi‑stage speed (fast feed, working, dwell, return) optimizes the crimping process.
• Fast Changeover & Fully Automatic Operation
  This automatic radiator crimping machine features a 10.4″ HMI with PLC, storing multiple product recipes. One‑touch recall eliminates complex adjustments – ideal for radiator assembly crimping machine tasks.
• Rugged & Reliable
  Heavy‑duty gantry frame and ball screw servo drive provide long‑term stability. Perfect as an industrial radiator crimping machine for high‑volume production lines.
• Safety & Line Integration
  Equipped with light curtain, emergency stop, automatic lubrication, and optional in‑line force‑displacement monitoring (IATF 16949 compliant). Easily integrates into radiator production line equipment.

Parameter	Value	Notes
Applicable Workpiece Range
Max. core plate length	850 mm	Customizable – suitable for car radiator crimping machine needs
Max. core plate span (height)	1000 mm
Max. core plate thickness	100 mm
Min. dimensions (L / span / thick.)	100 / 200 / 35 mm
Pressing Performance
Pressing speed	30 cycles/min (adjustable)
Step pitch	CNC adjustable
Pressing force accuracy	±0.5% – ±1% FS (servo closed‑loop)
Repeat positioning accuracy	≤±0.02 mm
Control System
HMI	10.4″ industrial touch screen	Dual control: touch + physical buttons
Controller	PLC + servo drive	Fault diagnosis, data traceability
Recipe storage	Yes, one‑click recall
Power & Pneumatics
Power supply	AC 380V 50Hz (3‑phase)
Total power	approx. 15–20 kW
Compressed air	0.6–0.7 MPa	Also functions as radiator tank crimping machine with pneumatic clamping
Structure & Travel
Working table stroke	Customized to radiator size
Nozzle avoidance stroke	70 mm	Prevents damage to water nipples
Machine weight	approx. 3000–3500 kg
Dimensions (L×W×H)	approx. 2200×2000×1900 mm	Customizable
Other Features
Crimping teeth count	Programmable per workpiece
Safety	Light curtain, emergency stop
Lubrication	Automatic lubrication system	This radiator crimping equipment supports 24/7 operation
