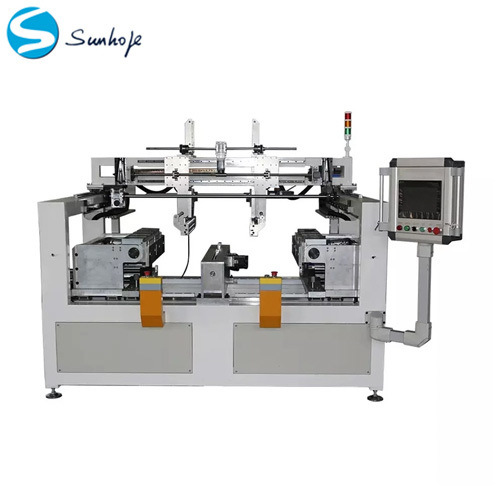

Efficient Versatile Radiator Core Assembly Machine
  • Efficient Versatile Radiator Core Assembly Machine
  • Efficient Versatile Radiator Core Assembly Machine
  • Efficient Versatile Radiator Core Assembly Machine
  • Efficient Versatile Radiator Core Assembly Machine
  • Efficient Versatile Radiator Core Assembly Machine

Efficient Versatile Radiator Core Assembly Machine

Место происхождения Гуандун, Китай
Фирменное наименование Sunhope
Детали продукта
Высота сердцевины радиатора:
350-780 мм (по индивидуальному заказу)
Толщина сердцевины радиатора:
16~48 мм (по индивидуальному заказу)
Зазор между ребром и пластинами коллектора:
2 мм (1,0 мм)
Ошибка ширины встроенного ядра:
±1.5mm
Масса:
2.2t
Условия оплаты и доставки
Количество мин заказа
1 комплект
Цена
обсуждаемый
Упаковывая детали
случай переклейки соответствующий для транспорта моря
Время доставки
60 дней
Условия оплаты
Л/К, Т/Т
Поставка способности
10sets/месяц
Описание продукта

Efficient Versatile Radiator Core Assembly Machine

Product Introduction

The Radiator Core Builder, also referred to as a radiator core assembly or building machine, is engineered for the efficient production of aluminum radiator cores used in cars, trucks, and various automotive applications. It supports both single-row and double-row core configurations and is adaptable for assembling a wide range of heat exchanger cores, including radiators, heaters, condensers, evaporators, intercoolers, and oil coolers. This machine ensures reliable performance and streamlined manufacturing for diverse industrial needs.

Key Advantages

  • Stable performance with high production efficiency

  • Quick and convenient mold changeover

  • Easy to operate and maintain

  • Flexible application across multiple radiator and heat exchanger types

Specifications

  • Core Dimension (H x W): 350–780 mm x 200–680 mm

  • Flat Tube Layers: 1 layer

  • Tube Laying Mode: Automatic feed into material library / Manual

  • Flat Tube Flaring Mode: Automatic / Optional

  • Fin Laying Mode: By fin tray / Manual

  • Machine Running Time: Approx. 25 seconds

  • Drive Mode: Pneumatic / Servo

  • Overall Dimension: 2300 x 1800 x 1800 mm

  • Weight: 2.2 T

Efficient Versatile Radiator Core Assembly Machine 0

Efficient Versatile Radiator Core Assembly Machine 1

Efficient Versatile Radiator Core Assembly Machine 2

Main Components & Brands

  • PLC – Mitsubishi

  • Servo Motor and Controller – Mitsubishi

  • Touch Screen (Color) – Mitsubishi

  • Pneumatic System – SMC

  • Linear Motion Series – TBI

About SUNHOPE

For over 15 years, SUNHOPE has been a leading manufacturer and developer specializing in automotive radiator and condenser components, exporting globally. Our expertise encompasses the entire radiator production line.

Core Services & Capabilities

  • Factory Setup Support: We assist international clients in establishing local radiator/condenser manufacturing plants, providing tailored solutions based on 15+ years of industry knowledge.
  • Comprehensive Equipment Supply: We supply complete production lines (including CKD kits) and offer pre-sales & after-sales technical support. Our engineers provide on-site installation guidance.
  • Full Component Supply: SUNHOPE is your single source for all essential radiator and condenser hardware and plastic components, guaranteeing supply chain reliability and finished product quality.
  • Technical Expertise: As equipment users ourselves, we possess deep operational understanding, enabling us to quickly identify and resolve potential production issues.
Efficient Versatile Radiator Core Assembly Machine 3 Efficient Versatile Radiator Core Assembly Machine 4

Why Partner with SUNHOPE?

  • Extensive Mould Inventory: Over 200 proprietary head plate moulds covering most popular global vehicle models.
  • Equipment Expertise: 10+ years of hands-on radiator manufacturing experience allows us to recommend and source optimal machinery for your needs.
  • Superior After-Sales Support: Strong partnerships with equipment providers ensure prompt and effective service. Our user perspective enables faster, more accurate problem-solving.
  • True One-Stop Solution: From factory design, equipment supply, and component sourcing to technical support - SUNHOPE delivers seamless integration for successful radiator production startup and operation.
