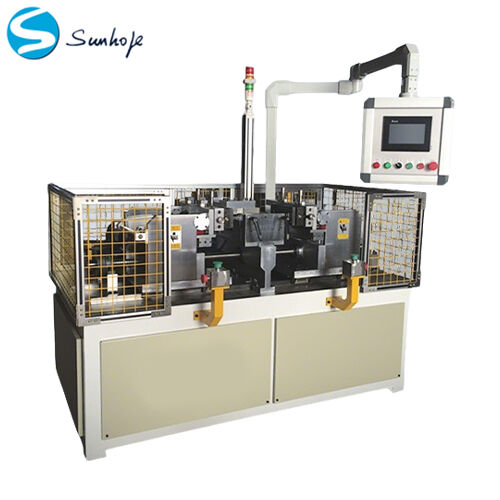

Heater Core Assembly Machine High Precision Assembly Flexible Changeover

The Heater Core Assembly Machine is a specialized radiator core assembly system designed for the automated production of automotive heater cores. It precisely assembles flat tubes, fins, main plates, and side plates into complete core assemblies. As a key piece of radiator making machine equipment in automotive heat exchanger manufacturing, it also supports the assembly of certain small-scale condensers and evaporator cores.

• High Precision Assembly – Ensures accurate flat tube pitch and uniform fin arrangement with excellent dimensional consistency. This core builder machine significantly improves the yield of subsequent brazing processes, achieving positioning accuracy up to ±0.01 mm.

• Flexible Changeover – Supports rapid model changeovers to accommodate various heater core specifications. It integrates seamlessly with fin press machine and fin forming machine lines, making it ideal for multi-variety, small-batch production of aluminium fin press applications.

*(Based on model RM-T22; customizable)*

This equipment is a non-standard industrial machine and can be fully customized based on core dimensions, production capacity, and automation requirements. Customization options include:

• Adaptation to various heater core specifications

• Fully automatic or semi-automatic versions

• Custom tooling and fixtures

• Integrated production line design with fin press line and tube expanding machine coordination

For over 15 years, SUNHOPE has been a leading manufacturer and developer specializing in automotive radiator and condenser components, exporting globally. Our expertise encompasses the entire radiator production line.

• Factory Setup Support: We assist international clients in establishing local radiator/condenser manufacturing plants, providing tailored solutions based on 15+ years of industry knowledge.
• Comprehensive Equipment Supply: We supply complete production lines (including CKD kits) and offer pre-sales & after-sales technical support. Our engineers provide on-site installation guidance.
• Full Component Supply: SUNHOPE is your single source for all essential radiator and condenser hardware and plastic components, guaranteeing supply chain reliability and finished product quality.
• Technical Expertise: As equipment users ourselves, we possess deep operational understanding, enabling us to quickly identify and resolve potential production issues.

• Extensive Mould Inventory: Over 200 proprietary head plate moulds covering most popular global vehicle models.
• Equipment Expertise: 10+ years of hands-on radiator manufacturing experience allows us to recommend and source optimal machinery for your needs.
• Superior After-Sales Support: Strong partnerships with equipment providers ensure prompt and effective service. Our user perspective enables faster, more accurate problem-solving.
• True One-Stop Solution: From factory design, equipment supply, and component sourcing to technical support - SUNHOPE delivers seamless integration for successful radiator production startup and operation.
